CONDOR short tubes type Swith flush plug connection
FOR BERSTLINING, CALIBRATION, TIP PROCESSING AND LINING

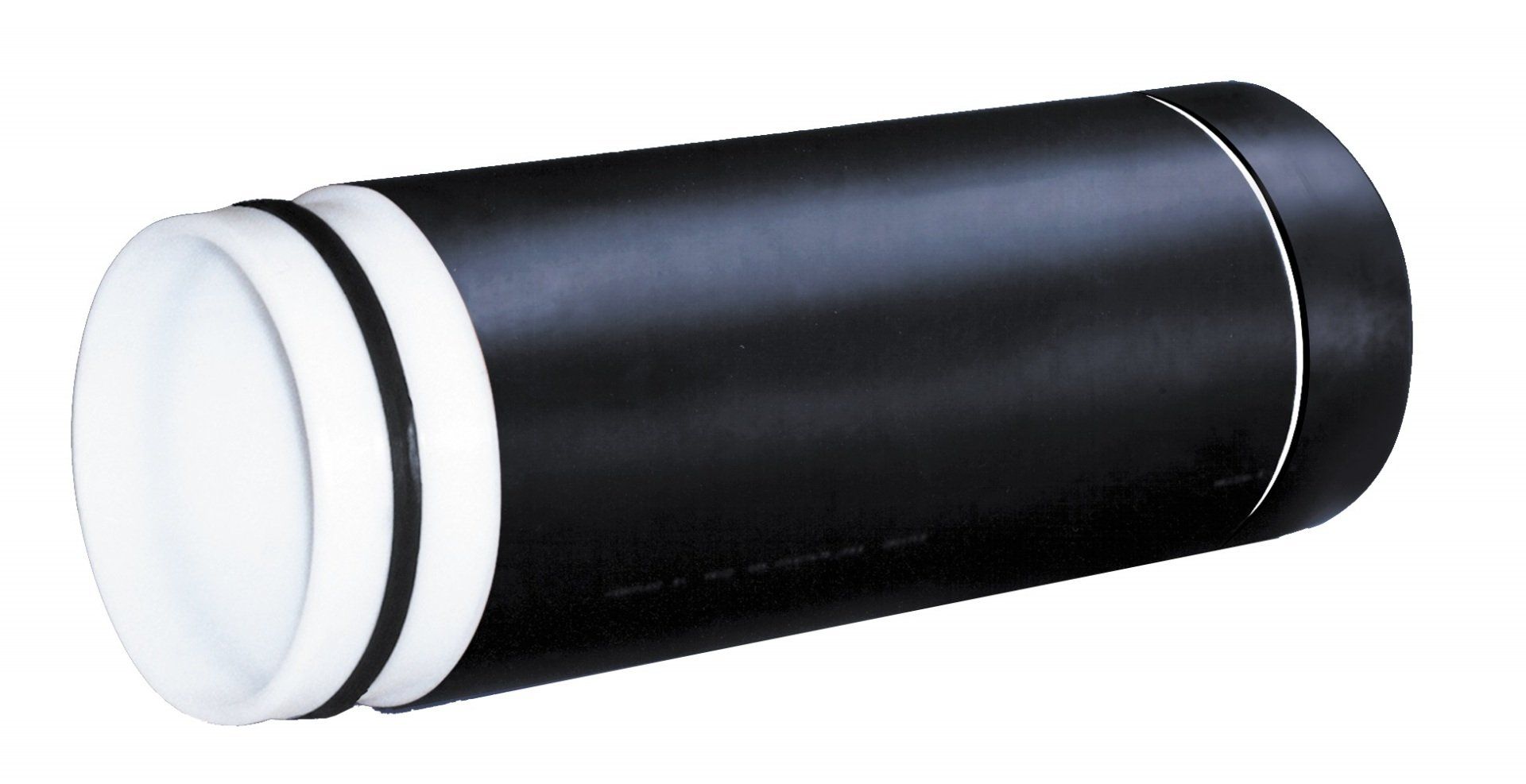

The Condor short pipe type SL is a short pipe made of polyethylene (PEHD) with a flush connection technology with a SBR wedge seal suitable for the renovation and renewal of defective free-flowing lines in the Lining process.
Technical specifications:
Pipe connection:
- inside and outside flush restrained connector
- Insertion depth: 80 - 100 mm depending on the pipe dimension, on request on special lengths
Module lengths (L2):
- 0.50 m, 0.60 m, 0.70 m, 0.80 m, 1.0 m, 1.20 m, 1.50 m, 2.0 m and 3.0 m

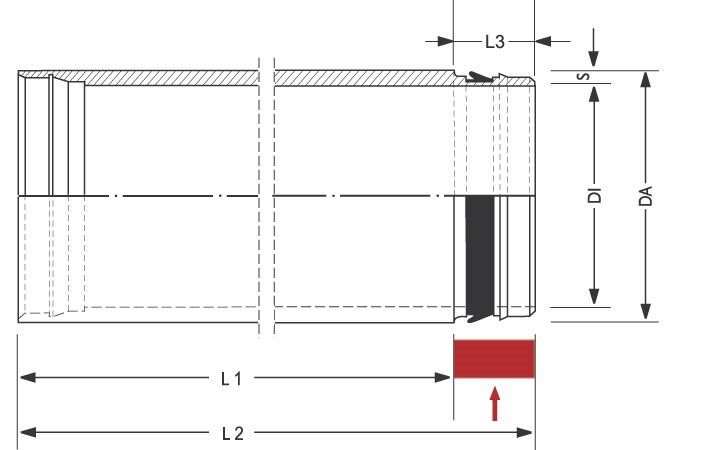

- Length (L1) see technical drawing); Special lengths on request
Pipe material / color:
- PEHD pipes according to DIN 8074/75 and DIN EN 12666-1
- DA 110 - DA 1000 mm black
- DA 160 - 630 mm black on the outside, light gray on the inside, inspection-friendly
Sealing system:
An SBR wedge seal integrated in the spigot end of the socket joint and two wedge seals per pipe dimension DA 710 mm to DIN 4060 and DIN EN 681-1, quality-monitored by COPRO in accordance with BENOR approval NBN EN 681-1; When pushing the plug-in sleeve, lubricants should be used to prevent dryness and thus possible twisting of the seal.
Mounting system:

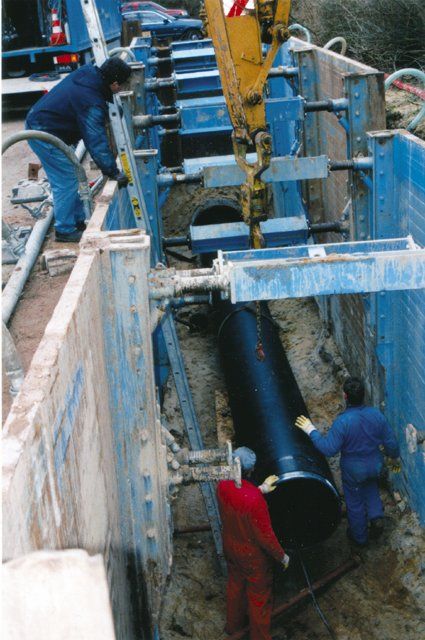

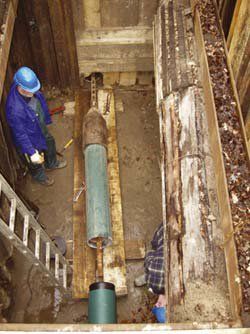

The tube modules are always delivered with an external groove on the pointed and socket end. The tube modules are pulled together either with the hydraulic CONDOR puller type Quick-Lock, a hydraulic chain hoist (recommended type Spannfix) or a hydraulic push cylinder with stopper plate.
jdhfcsdjkhfjhsd
Test report:
The tightness and root resistance are by testing according to DIN 19537, Part 2, at the MPA NRW, certificate no. 220004058-1 detected; Max. permissible test pressure 0.5 bar in accordance with DIN EN 1610. The short pipes are additionally approved by testing (test report no. 220007715) with the increased value of 2.0 bar internal pressure at 3 ° bending.
DOWNLOADS
LV-Text CONDOR Kurzrohr Typ S
LV-Text CONDOR short pipes for the renovation of sewage systems in the Lining process
