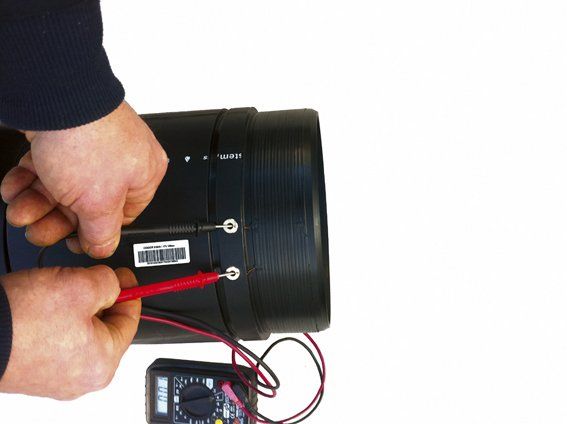

The short module type CONDORfuse is produced out of Polyethylen (HDPE) pipe material equipped with an integrated heating coil in the spigot guaranteeing a homogeneous safe welding joint.
The electrofusion technology is used mainly for the transportation of aggressive wastewater in sewer systems of the industrial sector, where higher safety regulations have to be fulfilled.BENEFITS

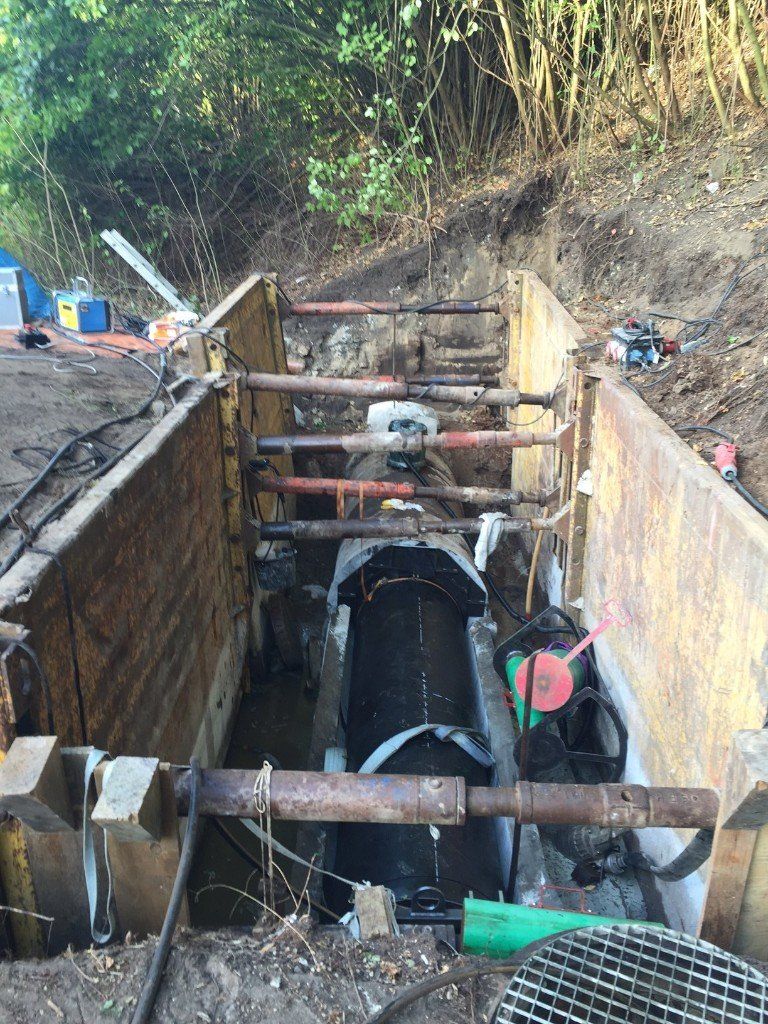

- easy and quick installation in shafts and small construction pits
- very short welding times with welding machines max. 48 V voltage controlled by barcodes – a leaktight solution!
- no weld reinforcement either inside nor outside the pipe
- tested by the German Test Institute, MPA Dortmund, certificate no. 220004058-1 according to the standard regulations for gravity sewer pipes DIN EN 1277, part 2
- fittings like bends, reductions etc. with the electrofusion CONDOR- weldingsystem are supplied on request
TECHNICAL SPECIFICATIONS

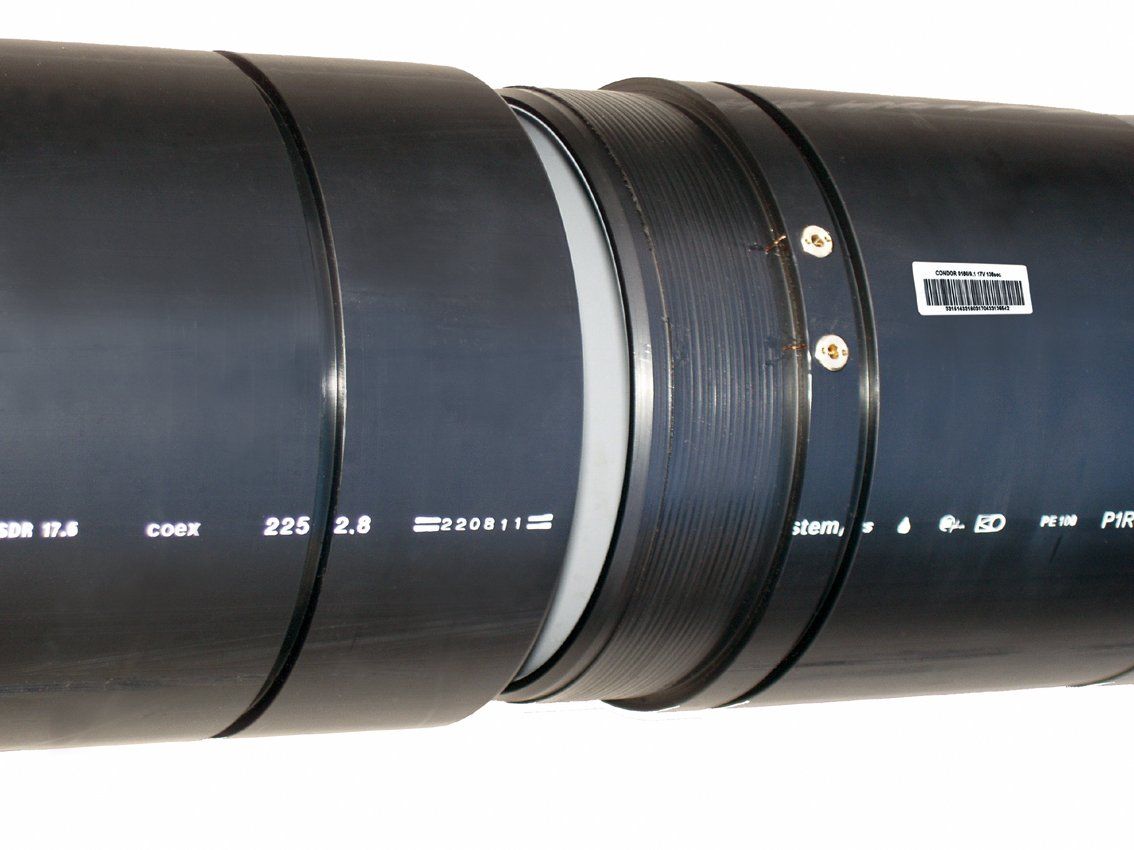

Joint system:
- high-tensile homogeneous welded joint
- insertion depth:
- up to OD 630 mm: 60 mm
- up to OD 1000 mm: 100 mm
- other insertion lengths on request
- up to pipes OD 242 mm: 0.64/0.70 m, 0.74/0.80 m, 0.94/1.0 m, 1.14/1.20 m
- up to pipes OD 355 mm: 0.64/0.70 m, 0.74/0.80 m, 0.94/1.0 m, 1.14/1.20 m, 1.44/1.50 m, 1.94/2.0 m
- up to pipes OD 630 mm: 0.64/0.70 m, 0.74/0.80 m, 0.94/1.0 m, 1.14/1.20 m, 1.44/1.50 m, 1.94/2.0 m, 2.94/3,0 m
- up to pipes OD 1000 mm: 0.60/0.70 m, 0.70/0.80 m, 0.90/1.0 m, 1.10/1.20 m, 1.40/1.50 m, 1.90/2.0 m, 2.90/3,0 m
- other lengths on request
Pipe material/colour:
- HDPE pipes in accordance to DIN 8074/75 and DIN EN 12666-1
- OD 110 mm to OD 1000 mm, colour: black
- OD 160 mm to OD 630 mm, colour: outside black, inside gray (guarantees optimal conditions for camera inspection)
- PP pipes on request
Welding system:
The short modules type CONDORfuse are tested and approved by the German Test Institute, MPA Dortmund, certificate no. 220004058-1 according to the standard regulations for gravity sewer pipes DIN EN 1277 with an internal pressure of 0.5 bar.
Assembling system:
The CONDOR short modules are always delivered with an external groove on the sleeve end. The modules pipes are pulled together either with a hydraulic chain hoist (recommended type Spannfix) or a hydraulic cylinder or by winching with the help of a stopper plate.
Certificate:
MPA tested, test certificate No. 220004058-1
