hydraulic puller type Quick-Lock
hydraulic puller type Quick-Lock
FOR THE FAST MOUNTING OF THE CONDOR SHORT TUBES TYPE S AND TYPE CONDORfuse

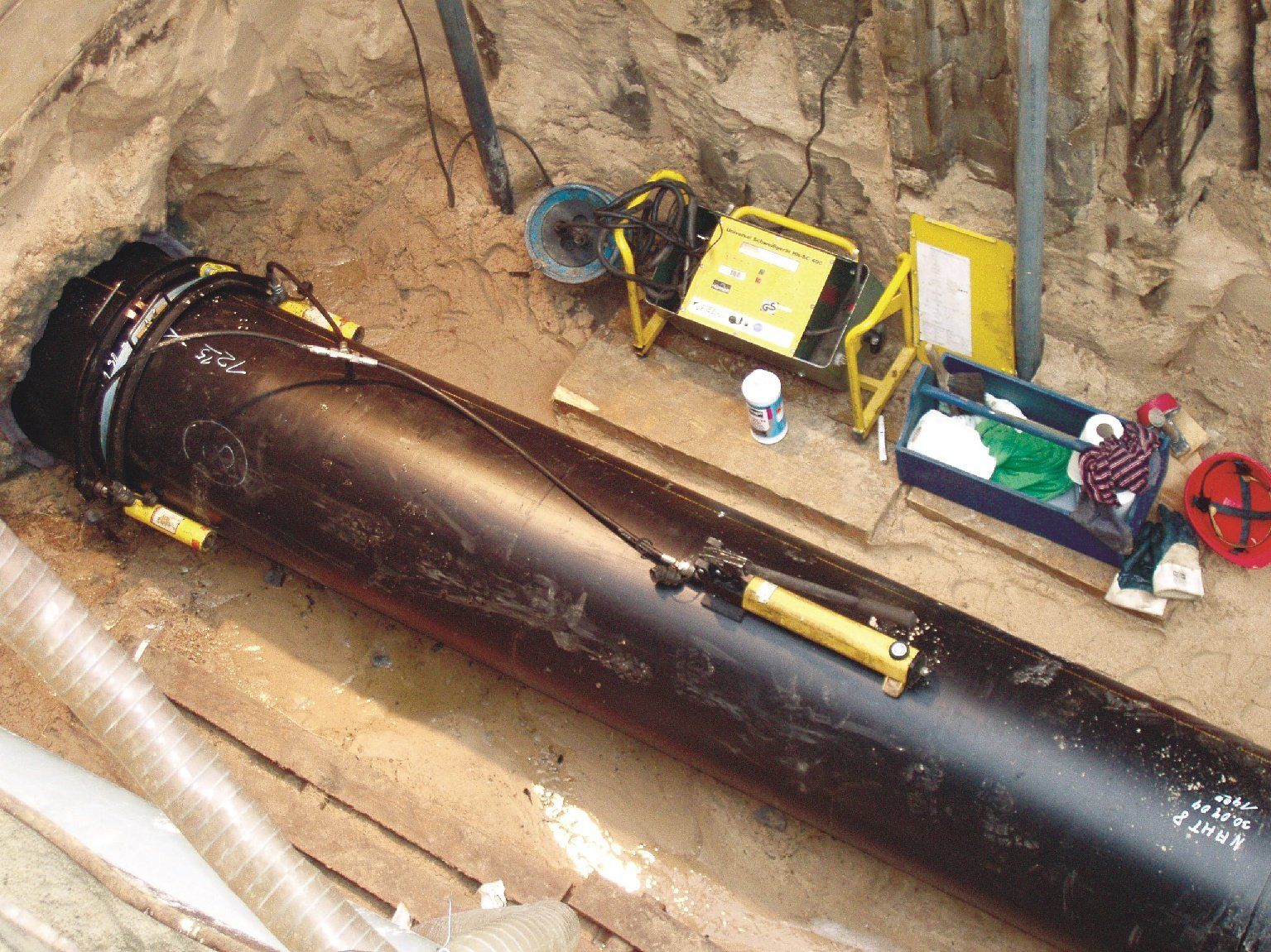

This is a compact hydraulic traction unit for quick, easy and problem-free assembly of the plugged, restrained and electroweldable CONDOR short pipes from manhole structures DN 1000 mm and excavation pits.

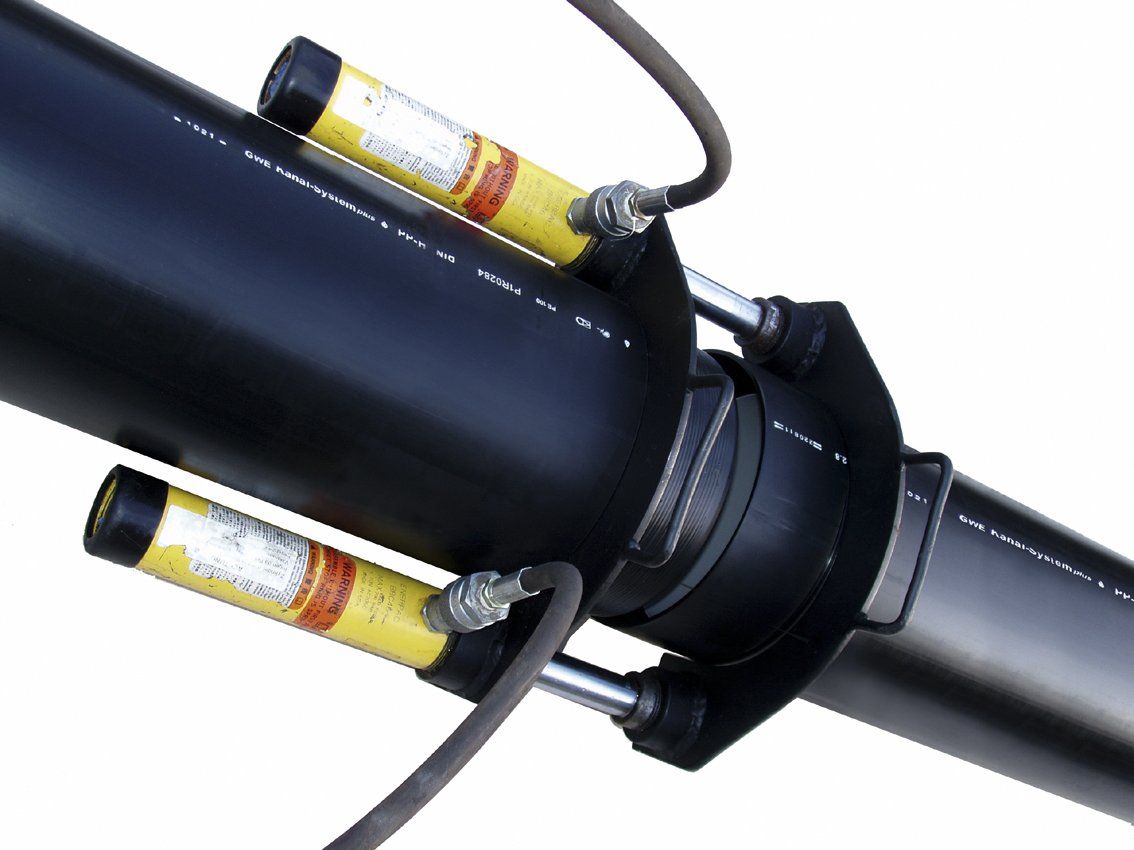

The provided with outer grooves (6) short tube modules are used to hold and lock the steel bracket (1). The socket end of the one short tube module (5) is snapped into the spigot end of the follower module (5) by means of the two pull cylinders (2) (see illustration above left).
When using the QUICK-LOCK-SYSTEM, short tube modules with 0.74 m (L1) and 0.8 m (L2) lengths up to OD 560 mm can be used from standard DN 1000 shafts - instead of 0 short tube modules as before , 64 / 0.70 m in length.
Advantages:
- shorter installation times
- little need for space!
- larger lengths from standard shafts DN 1000 to DA 560 mm tube
An economical solution!
HYDRAULIC TRAINER TYPE QUICK-LOCK:
- 2 pull cylinders
- 1 hydraulic hand pump with coupling (pressure max 700 bar)
- 1 set of hydraulic hoses with couplings and cap
- 2 hook spanners
- 1 hydraulic oil
- 1 PE wedge for alignment
- 1 ironing set (2 pieces = set) per PE pipe diameter DA160 - DA 800
ADDITIONAL ACCESSORIES:
- 1 hydraulic extension hose (6 m), complete with coupling
- 1 metal transport box 0.91 mx 0.53 mx 0.43 m
,
