Sewage saddle type E / i

Condor wastewater type E / i

WELDABLE FROM THE INSIDE IN PEHD PP PROFILE WINDING PIPES
IN OPEN CONSTRUCTION

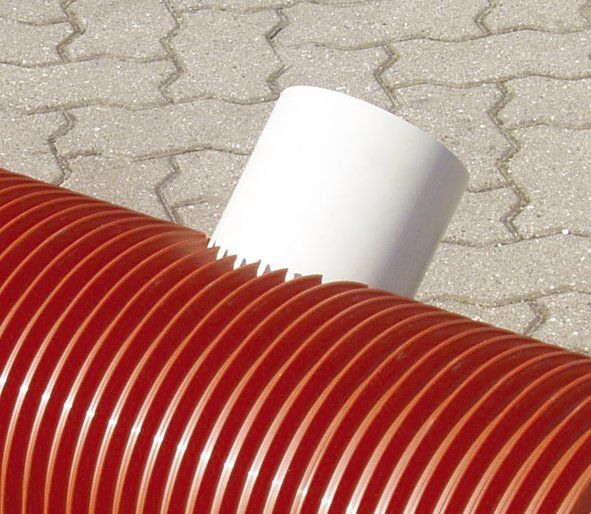

For the frequently used PEHD / PP profile channel pipes and solid wall winding pipes DN 300 - DN 3600 mm as well as extruded PEHD solid wall pipes in the range DA 710 - 2000 mm, Condor supplies an internally weldable type E / i sewage tank for connecting side inlets DN 150.

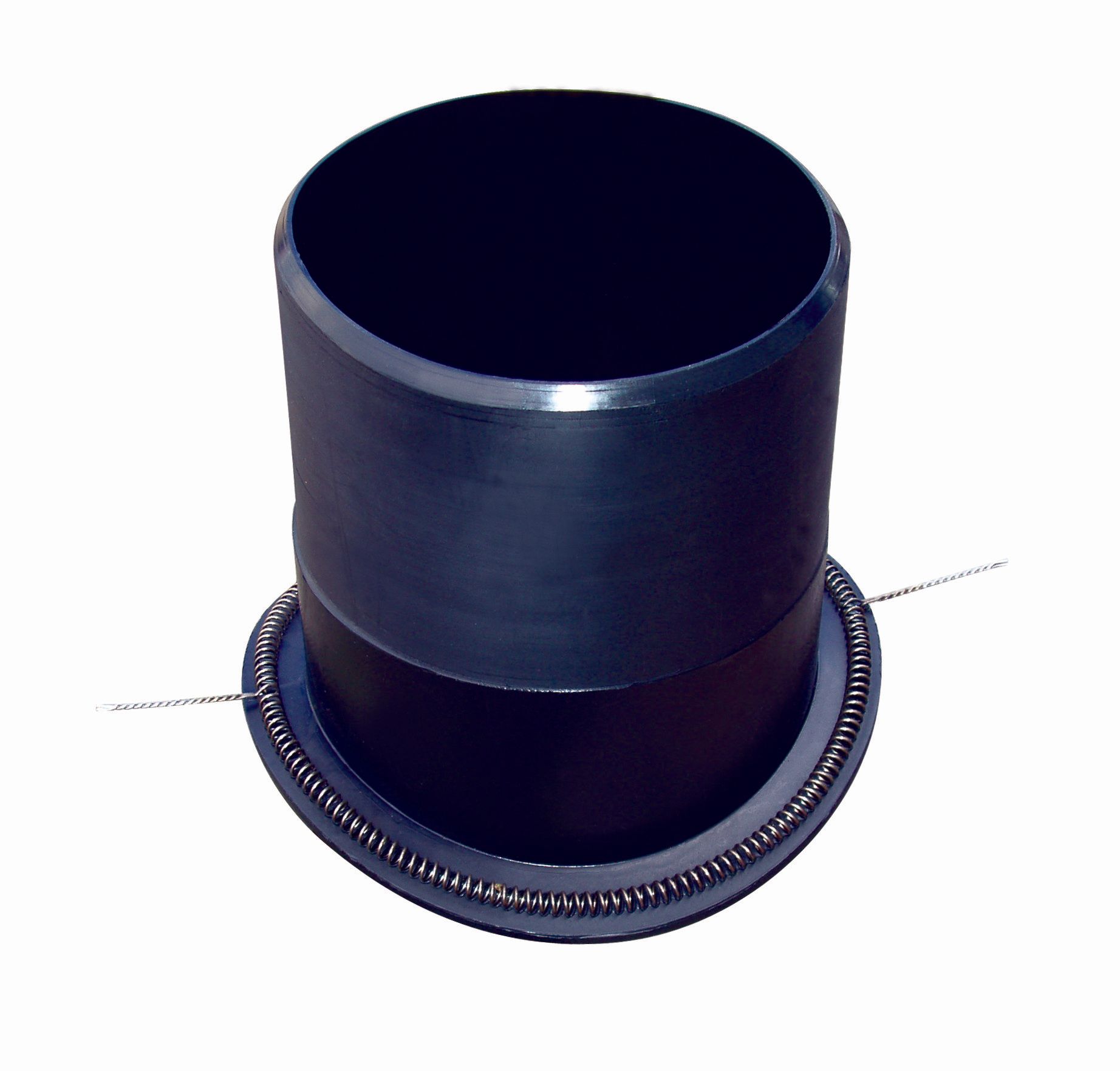

With the aid of a patented clamping device, the type E / i sewage saddle is pulled through the outgoing opening created with a hole saw, clamped from the outside and bar-coded with any conventional E-socket welding machine with max. 48 V voltage, with temperature compensation and log memory welded.

Advantages:

a homogeneous welded joint with additional mechanical gearing
simple quick installation with the CONDOR clamping tool
with outlet DA 160 mm, DN 150 mm ready for connection to commercially available molded parts or e-sleeves, etc.
Can be used for pipes with a minimum basic wall thickness of approx. 3.0 mm
can be used for free-flow lines 0.5 bar

Technical specifications:

Pipe material:

PEHD pipe: according to DIN 8074/75 and DIN EN 12666-1

Module length (L2):

1.0 - 2.50 m

Pipe connection:

blunt-end, prepared for heating element butt welding in accordance with the DVS guidelines 2207, part 1 with a special butt welding machine working in the pipe for the rehabilitation of egg profiles according to DIN 4263 in the lining method.

Exam:

Testing (dimensional stability / stiffness) in accordance with DIN 19537 T 2, Verf. A. (see test report, Münster University of Applied Sciences)
Leak test in accordance with DIN 1610 with water 0.5 bar overpressure
