When rehabilitating old pipes with short pipes in the lining process, the newly drawn short pipe string can sometimes also be positioned centrically and fixed in the old pipe by spacers, depending on the installation conditions.

For this purpose, Condor offers skid rings with a simple connection technology, consisting of several segments with different heights. This system guarantees short assembly times and an additional clamping tool is not needed.

If the short pipe section is to be installed the same way to prevent buoyancy, Condor also supplies PEHD short pipes with welded-on spacers.

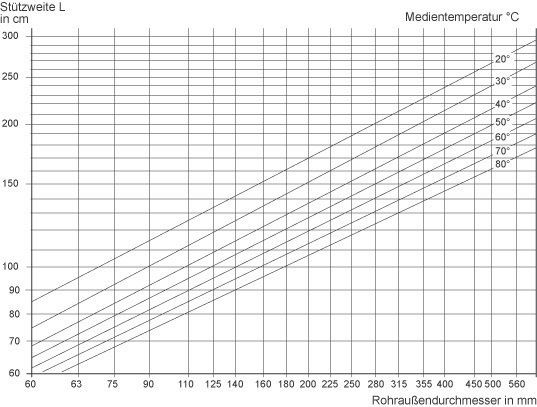

The distances of the spacers in centrically mounted pipes can be found in the following table.

Non-binding standard values see also DIN 16928.

The recorded spans are for PEHD pipes PN 6 (SDR 17.6) and PN 10 (SDR 11).

Permissible deflection after 10 years

F = L (cm)

300

This information is for your information and advice. A liability can not be derived from this. We ask that the processing and application of the products be adapted to the particular circumstances. Subject to change.
